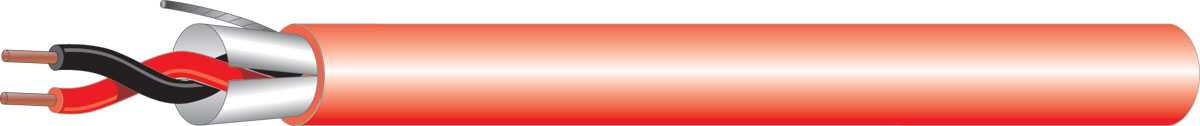

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Conductors
2
• AWG Size
12
• Conductor Stranding
Solid
• Conductor Type
Bare Copper
• Nominal DCR
1.8 Ohm/1000ft
• Cabling Lay Length
3.25 in
• Twists/Foot
3.7 twist/ft
INSULATION PARAMETER
• Insulation Type
Thermoplastic
• Insulation Thickness
0.008 in
• Insulation Color Code
1. Black 2.Red
SHIELDING PARAMETER
• Shield Type
Overall 100% Aluminum Foil
• Drain Wire Type
Tinned Copper
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nom. Cap. Between Conductors
44 pF/ft
• Nom. Cap. Conductor to Shield
77 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Jacket Type
PVC
Jacket Thickness
0.017 in
Nominal Cable O.D.
0.248 in
Plenum
No
NEC UL Rating
FPLR
RoHS Compliant
Yes
Pull Tension
172 lbs
Bend Radius
2.232 in
Cable Weight
66 lbs
Belden: 5020FL
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1666 Vertical Shaft
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
RELATED PRODUCTS
Plenum Number
60994B
Aquaseal Number
AQC296
Aquaseal Direct Burial Number
AQ296
