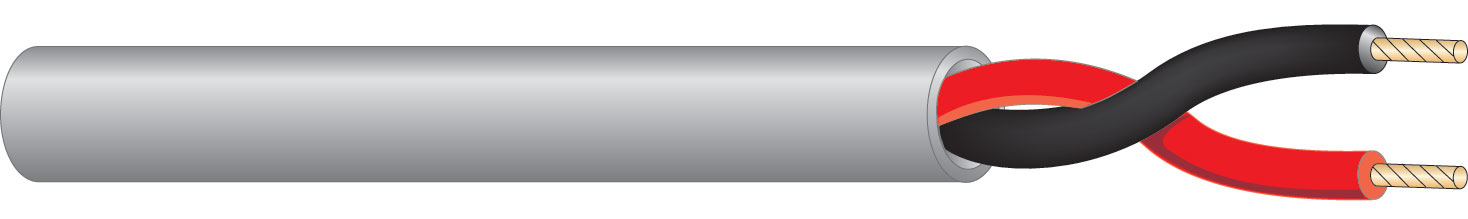

CONSTRUCTION & DIMENSIONS
CONDUCTOR PARAMETER
• Number of Conductors
2
• AWG Size
22
• Conductor Stranding
Solid
• Conductor Type
Bare copper
• Nominal DCR
17.5 Ohm/1000ft
• Cabling Lay Length
1.5 in
• Twists/Foot
8 twist/ft
INSULATION PARAMETER
• Insulation Type
Thermoplastic
• Insulation Thickness
0.007 in
• Insulation Color Code
1. Black 2.Red
SHIELDING PARAMETER
• Shield Type
None
ELECTRICAL CHARACTERISTICS
OVERALL CONSTRUCTION PARAMETERS
Jacket Type
PVC
Jacket Thickness
0.017 in
Nominal Cable O.D.
0.118 in
Plenum
No
NEC UL Rating
CMR, CMG
RoHS Compliant
Yes
Pull Tension
18 lbs
Bend Radius
1.062 in
Cable Weight
10 lbs
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1666 Vertical Shaft
CSA Flammability
FT4
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
