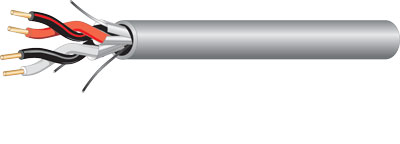

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Pairs
2
• AWG Size
22
• Conductor Stranding
Solid
• Conductor Type
Tinned Copper
• Nominal DCR
17.5 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
Polypropylene - PP
• Insulation Thickness
0.008 in
• Insulation Color Code
1. Black-Rd, Red, 2.Black-Wh, White
SHIELDING PARAMETER
• Shield Type
Individually Shielded
• Drain Wire Type
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nom. Cap. Between Conductors
34 pF/ft
• Nom. Cap. Conductor to Shield
67 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
4
Jacket Type
PVC
Jacket Thickness
0.017 in
Nominal Cable O.D.
0.195 in
Plenum
No
NEC UL Rating
CMR, CMG
RoHS Compliant
Yes
Pull Tension
39 lbs
Bend Radius
1.75 in
Cable Weight
25 lbs
DOWNLOAD DATA SHEET
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1666 Vertical Shaft
CSA Flammability
FT4
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
