ANSI/TIA-568-С.2: exceeds category 5e (1-100 MHz) component specifications
Unscreened twisted pair (U/UTP) or screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Cable Diameter:
Min: 0.20” (5 mm)
Max: 0.35” (9 mm)
8p8c (8-position, 8-contact) “RJ45” style
ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
22 to 24 AWG (0.644 to 0.511 mm)
Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet
Panel:
Front: Steel with corrosive resistant black finish
Rear: Steel
Cable management bar: Steel with nickel plating
Jack:
Housing: High impact thermoplastic, UL94V-0 fire retardant
Spring Wire: Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy
Total Contact Force: Min 800 g for 8 wire leads with FCC compliant 8p8c plug
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles with FCC compliant 8p8c plug
Panel: 19-in rack mountable
Depth:
Management Bar Installed: 4.5” (114 mm)
Management Bar Uninstalled: 1.5” (38 mm)
Height:
24458S-C5E: 1 RMU (1.75” (44.45 mm))

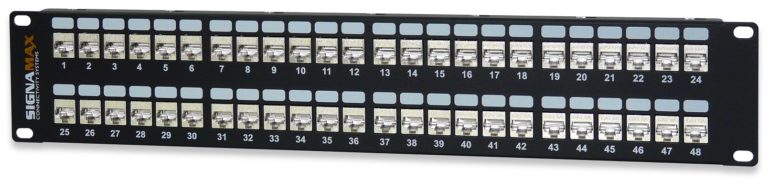

48458S-C5E: 2 RMU (3.50” (88.90 mm))
72458S-C5E: 2 RMU (3.50” (88.90 mm))
Jack: 1.67” D x 0.58” W x 1.02” H (42.4 mm x 14.6 mm x 25.8 mm)
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)
ANSI/TIA-568-C.2, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0, UL 1863, IEC 60603-7
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
