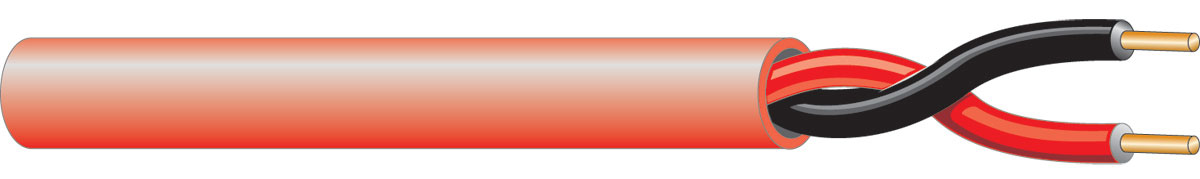

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Conductors
2
• AWG Size
14
• Conductor Stranding
Solid
• Conductor Type
Bare Copper
• Nominal DCR
2.6 Ohm/1000ft
• Cabling Lay Length
3.5 in
• Twists/Foot
3.4 twist/ft
INSULATION PARAMETER
• Insulation Type
Thermoplastic
• Insulation Thickness
0.01 in
• Insulation Color Code
1. Black 2.Red
SHIELDING PARAMETER
• Shield Type
None
ELECTRICAL CHARACTERISTICS
• Nom. Cap. Between Conductors
23 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Jacket Type
PVC
Jacket Thickness
0.022 in
Nominal Cable O.D.
0.222 in
Plenum
No
NEC UL Rating
FPLR
RoHS Compliant
Yes
Pull Tension
99 lbs
Bend Radius
1.998 in
Cable Weight
41 lbs
BELDEN: 5120UL
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1666 Vertical Shaft
Operating Range
-20 to 75 Deg C
UL Voltage Rating
300
RELATED PRODUCTS
Plenum Number
60993B
Aquaseal Number
AQC226
Aquaseal Direct Burial Number
AQ226
