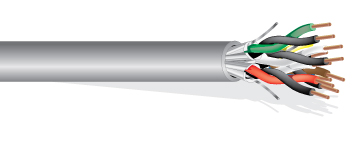

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Pairs
6
• AWG Size
22
• Conductor Stranding
Solid
• Conductor Type
Bare copper
• Nominal DCR
17.5 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
PVC
• Insulation Thickness
0.01 in
• Insulation Color Code
1.Black-Red, 2. Black-White 3. Black-Green 4. Black-Blue 5. Black-Yellow 6. Black-Brown
SHIELDING PARAMETER
• Shield Type
Individually Shielded
• Shield Type 2
Aquaseal Water Blocking Tape
• Drain Wire Type
Tinned Copper
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nom. Cap. Between Conductors
55 pF/ft
• Nom. Cap. Conductor to Shield
99 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
12
Jacket Type
UV Resistant PVC
Jacket Thickness
0.025 in
Nominal Cable O.D.
0.51 in
Plenum
No
NEC UL Rating
CM, CL3
RoHS Compliant
Yes
TIA Test
TIA455-82 Water Penetration Test
Pull Tension
128 lbs
Bend Radius
4.59 in
Cable Weight
70 lbs
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1685
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
