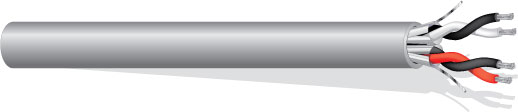

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Pairs
2
• AWG Size
22
• Conductor Stranding
7x30
• Conductor Type
Tinned Copper
• Nominal DCR
17 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
FEP
• Insulation Thickness
0.007 in
• Insulation Color Code
1. Black 2.Red
SHIELDING PARAMETER
• Shield Type
Individually Shielded each has a drain wire
• Drain Wire Type
Tinned Copper (2 drain wire each Ind. Shield)
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nominal Impedance
55 Ohm
• Nom. Cap. Between Conductors
35 pF/ft
• Nom. Cap. Conductor to Shield
67 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
4
Jacket Type
Flexible Plenum
Jacket Thickness
0.017 in
Nominal Cable O.D.
0.218 in
Plenum
Yes
NEC UL Rating
CMP
RoHS Compliant
Pull Tension
55 lbs
Bend Radius
1.962 in
Cable Weight
27 lbs
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
NFPA 262 Plenum
Operating Range
-0 to 60 Deg C
UL Voltage Rating
300
