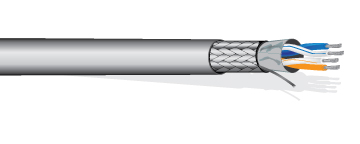

CONSTRUCTION & DIMENSIONS
CONDUCTOR PARAMETER
• Number of Pairs
2
• AWG Size
24
• Conductor Stranding
7x32
• Conductor Type
Tinned Copper
• Nominal DCR
26 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
Foam FEP
• Insulation Thickness
0.023 in
• Insulation Color Code
1.Blue-White,Blue
SHIELDING PARAMETER
• Shield Type
Overall 100% Aluminum Foil
• Shield Type 2
90% Tinned Braid
• Drain Wire Type
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nominal Impedance
120 Ohm
• Nom. Cap. Between Conductors
12.8 pF/ft
• Nom. Cap. Conductor to Shield
23 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
4
Jacket Type
Flexible Plenum
Jacket Thickness
0.017 in
Nominal Cable O.D.
0.305 in
Plenum
Yes
NEC UL Rating
CMP
RoHS Compliant
Pull Tension
56 lbs
Bend Radius
2.745 in
Cable Weight
38 lbs
Belden: 89842
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
Nominal Velocity of Propagation (VP)
69 %
Delay Skew
1.6 ns/ft
UL Flammability
NFPA 262 Plenum
Operating Range
-0 to 60 Deg C
UL Voltage Rating
300
