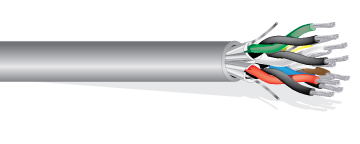

D438

CONSTRUCTION & DIMENSIONS

-

CONDUCTOR PARAMETER

-

   • Number of Pairs

27

   • AWG Size

22

   • Conductor Stranding

7x30

   • Conductor Type

Tinned Copper

   • Nominal DCR

17 Ohm/1000ft

INSULATION PARAMETER

-

   • Insulation Type

Polypropylene - PP

   • Insulation Thickness

0.006 in

   • Insulation Color Code

1.Black-Red, 2. Black-White 3. Black-Green 4. Black-Blue  5. Black-Yellow 6. Black-Brown 7.Black-Orange 8.Red-White 9.Red-Green 10.Red-Blue 11.Red-Yellow 12.Red-Brown 13.Red-Orange 14.Green-White 15.Green-Blue 16.Green-Yellow 17.Green-Brown 18.Green-Orange 19.White-Blue 20.White-Yellow 21.White-Brown 22.White-Orange 23.Blue-Yellow 24.Blue-Brown 25.Blue-Orange 26.Brown-Yellow 27.Brown-Orange

SHIELDING PARAMETER

-

   • Shield Type

Individually Shielded

   • Drain Wire Type

Tinned Copper

   • Drain Wire AWG

24 AWG

ELECTRICAL CHARACTERISTICS

-

   • Nom. Cap. Between Conductors

34 pF/ft

   • Nom. Cap. Conductor to Shield

67 pF/ft

OVERALL CONSTRUCTION PARAMETERS

-

Total Number of Conductors

54

Jacket Type

PVC

Jacket Thickness

0.017 in

Nominal Cable O.D.

0.678 in

Plenum

No

NEC UL Rating

CM

RoHS Compliant

Yes

Pull Tension

511 lbs

Bend Radius

6.102 in

Cable Weight

280 lbs
