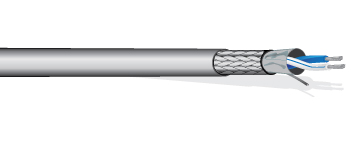

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Pairs
1
• AWG Size
24
• Conductor Stranding
7x32
• Conductor Type
Tinned Copper
• Nominal DCR
26 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
Polyolefin
• Insulation Thickness
0.02 in
• Insulation Color Code
1.Blue-White,Blue
SHIELDING PARAMETER
• Shield Type
Overall 100% Aluminum Foil
• Shield Type 2
90% Tinned Braid
• Drain Wire Type
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
Nom. Impedance
• Nom. Cap. Between Conductors
120 Ohms
12.8 pF/ft
• Nom. Cap. Conductor to Shield
23 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
2
Jacket Type
LSZH
Jacket Thickness
0.030 in
Nominal Cable O.D.
0.255 in
Plenum
No
NEC UL Rating
CMG-LS
RoHS Compliant
Yes
Pull Tension
72 lbs
Bend Radius
2.50 in
Cable Weight
32 lbs
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1685 Vertical Shaft
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300 V RMS
