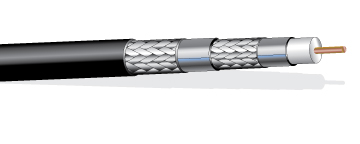

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Conductors
1
• AWG Size
18
• Conductor Stranding
Solid
• Conductor Type
Bare copper
• Nominal DCR
6.5 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
Foam Polyethylene
• Insulation Thickness
0.18 in
SHIELDING PARAMETER
• Shield Type
Overall 100% Aluminum Foil + 60% Aluminum Braid
• Shield Type 2
Overall 100% Aluminum Foil + 40% Aluminum Braid
ELECTRICAL CHARACTERISTICS
• Nominal Impedance
75 Ohm
• Nom. Cap. Between Conductors
16.2 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Jacket Type
PVC
Nominal Cable O.D.
0.295 in
Plenum
No
NEC UL Rating
CATV
RoHS Compliant
Yes
Bend Radius
2.94 in
Cable Weight
40 lbs
Belden: 5339Q5
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
Nominal Velocity of Propagation (VP)
82 %
UL Flammability
UL1685
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
