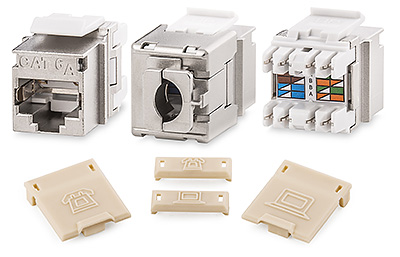

ANSI/TIA-568-C.2, IEC/ISO 11801, ISO/IEC 60603-7-51: exceeds category 6A (1-500 MHz) component specifications
Unscreened (U/UTP) or screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Cable Diameter:
Min: 0.20″ (5 mm)
Max: 0.35″ (9 mm)
8p8c (8-position, 8-contact) “RJ45” style
ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
22 to 24 AWG (0.644 to 0.511 mm)
Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage:
1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
1,500 Vdc/ac peak contact-to-panel @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet.
Housing: Zinc-alloy
Jack Spring Wire: Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy
Total Contact Force: Min 800 g for 8 wire leads
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles
Standard keystone footprint
1.67” D x 0.58” W x 1.02” H (42.4 mm x 14.6 mm x 25.8 mm)
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)
ANSI/TIA-568-C.2, IEC/ISO 11801, ISO/IEC 60603-7-51, FCC Part 68 Subpart F, UL 94V-0
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System
