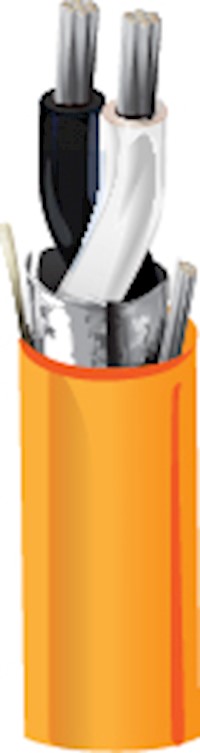

1PR18P

1 PR 18 AWG SHLD 100 OHM CMP RS-485, TEMP CONTROL

COLORS:

LENGTHS:

Price: $1,200.00

Ship To:

Quantity:

Add To Cart

SKU: 1PR18POR1000

Sharing Discount has been applied

Tell A Friend

Product Details

Conductor Parameter
No. of Pairs	1
AWG Size	18 AWG
Conductor Stranding	16x30
Conductor Type	Tinned Copper
Nom. DCR	6.1 Ohms/1000ft
Insulation Parameter
Insulation Type	Foam FEP
Insulation Thickness	.028”
Insulation Color Code	PR1: Black, White
Shielding Parameter
Shield Type	Overall 100% Al. Foil Shield
Drain Wire	22AWG (7x30) TC
Electrical Characteristics
Nom. Impedance	100 Ohms
Nom. Capacitance	15.3 pF/ft

Overall Construction Parameters
Total No. of Conductors	2
Jacket Type	Plenum PVC
Jacket Thickness	.020”
Nom. Cable O.D.	0.253
Plenum	Yes
RoHS Compliant	Yes
Bend Radius	2.4 in
Pull Tension	47 lbs
Cable Weight	26 lbs

Overall Electrical Characteristics
UL Flammibility	NFPA 252 Plenum
OPERATING RANGE	-20 TO 60C Degrees
UL VOLTAGE	300V

Product Details

Options	SKU	Price
OR - Orange; 1000ft	1PR18POR1000	$1,200.00
OR - Orange; 500FT	1PR18POR0500	$625.00
