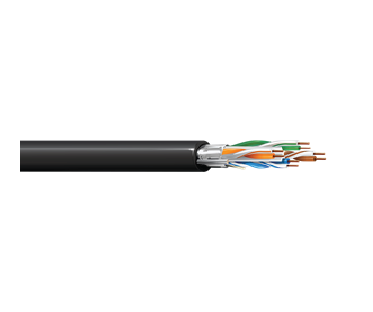

4236F
Cat6+ 4Pr.23 AWG F/UTP 350Mhz CMR
Colors:
BK - Black
Lengths:
500
1000
Price:
$659.52
Ship To:
(add new)
yourself
SKU:
4236FBK1000
Sharing Discount has been applied
Product Details
Download Data Sheet
CONDUCTOR PARAMETERS
Number Of Pairs
4
AWG Size
23
Conductor Stranding
Solid
Conductor Type
Bare Copper
Nominal DCR
28.6 Ohm/1000ft
INSULATION PARAMETERS
Insulation Type
Polyolefin
Insulation Color Code
1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
Separator: Center Member (Patented X-Spline®)
SHIELDING PARAMETERS
Shield Type
Overall 100% Aluminum Foil (F/UTP)
Drain Wire AWG Size
26 AWG
Drain Wire Type
Tinned Copper
ELECTRICAL CHARACTERISTICS
Nominal Impedance
100 Ohm
Nominal Capacitance Between Conductors
14 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
8
Jacket Type
PVC
Nominal Cable O.D.
0.275 in
Plenum
No
NEC UL Rating
CMR
RoHS Compliant
Yes
ANSI/TIA Category
Category 6 TIA/EIA 568.2-D
TIA Test
ANSI/TIA-568.2-D
Pull Tension
25 lbs
Bend Radius
1.45 in
Cable Weight
37 lbs
BELDEN: 2412FS
Electrical Characteristics
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
Nominal Velocity of Propagation (VP)
68 %
Delay Skew
45 ns/100m
UL Flammability
UL1666 Vertical Shaft
CSA Flammability
FT4
Operating Range
-20 to 75 Deg C
UL Voltage Rating
300
Frequency
(Mhz)
Max.
Insertion
Loss
Min.
NEXT
Min.
PSNEXT
Min.
PSACR
Min.
ACR
Min.
PSACRF
(PSELFEXT)
Min.
ACRF
(ELFEXT)
Min.
PSANEXT
Min.
PSAACRF
Min. RL
(Return
Loss)
Min.
TCL
Min.
ELTCTL
Max/Min
Input
Imp.
Unfit
Max/Min
Fitted
Imp.
1 MHz
2 db/100m
75.3 dB
73.3 dB
71.3 dB
73.3 dB
67.8 dB
70.8 dB
67 dB
67 dB
20 dB
40 dB
35 dB
100 ± 15 Ohm
100 ± 15 Ohm
4 MHz
3.7 db/100m
66.3 dB
64.3 dB
60.6 dB
62.6 dB
55.8 dB
58.8 dB
67 dB
66.2 dB
23 dB
40 dB
23 dB
100 ± 15 Ohm
100 ± 15 Ohm
8 MHz
5.2 db/100m
63.3 dB
61.3 dB
56.1 dB
58.1 dB
49.7 dB
52.7 dB
67 dB
60.2 dB
24.5 dB
40 dB
17 dB
100 ± 15 Ohm
100 ± 15 Ohm
10 MHz
5.8 db/100m
61.8 dB
59.8 dB
54 dB
56 dB
47.8 dB
50.8 dB
67 dB
58.2 dB
25 dB
40 dB
15 dB
100 ± 15 Ohm
100 ± 15 Ohm
16 MHz
7.4 db/100m
58.6 dB
56.6 dB
49.2 dB
51.2 dB
43.7 dB
46.7 dB
67 dB
54.1 dB
25 dB
38 dB
10.9 dB
100 ± 15 Ohm
100 ± 15 Ohm
20 MHz
8.3 db/100m
57.1 dB
55.1 dB
46.8 dB
46.8 dB
41.8 dB
44.8 dB
67 dB
52.2 dB
25 dB
37 dB
9 dB
100 ± 15 Ohm
100 ± 15 Ohm
25 MHz
9.3 db/100m
55.5 dB
53.5 dB
44.3 dB
46.3 dB
39.8 dB
42.8 dB
67 dB
50.2 dB
24.3 dB
36 dB
7.1 dB
100 ± 15 Ohm
100 ± 15 Ohm
31.25 MHz
11.4 db/100m
54 dB
52 dB
41.6 dB
43.6 dB
37.9 dB
40.9 dB
67 dB
48.3 dB
23.6 dB
35.1 dB
5.1 dB
100 ± 15 Ohm
100 ± 15 Ohm
62.5 MHz
15 db/100m
49.1 dB
47.1 dB
32.1 dB
34.1 dB
31.9 dB
34.9 dB
65.6 dB
42.3 dB
21.5 dB
32 dB
100 ± 15 Ohm
100 ± 15 Ohm
100 MHz
19.3 db/100m
45.8 dB
43.8 dB
24.5 dB
26.5 dB
27.8 dB
30.8 dB
62.5 dB
38.2 dB
20.8 dB
30 dB
100 ± 15 Ohm
100 ± 15 Ohm
155 MHz
24.5 db/100m
42.7 dB
40.7 dB
16.2 dB
18.2 dB
24 dB
27 dB
59.6 dB
34.4 dB
19.8 dB
28 dB
100 ± 15 Ohm
100 ± 15 Ohm
200 MHz
28.3 db/100m
40.9 dB
38.9 dB
10.6 dB
12.6 dB
21.8 dB
24.8 dB
58 dB
32.2 dB
18.7 dB
27 dB
100 ± 22 Ohm
100 ± 15 Ohm
250 MHz
32.1 db/100m
39.3 dB
37.3 dB
5.2 dB
7.2 dB
19.8 dB
22.8 dB
56.5 dB
30.2 dB
18 dB
26 dB
100 ± 32 Ohm
100 ± 15 Ohm
300 MHz
38 db/100m
38.1 dB
36.1 dB
-0.5 dB
2.5 dB
18.3 dB
21.3 dB
55.3 dB
28.7 dB
17.5 dB
100 ± 32 Ohm
100 ± 15 Ohm
350 MHz
38.9 db/100m
37.1 dB
35.1 dB
-3.7 dB
-1.7 dB
16.9 dB
19.9 dB
54.3 dB
27.3 dB
17 dB
100 ± 32 Ohm
100 ± 15 Ohm
400 MHz
42 db/100m
36.3 dB
34.3 dB
-7.7 dB
-5.7 dB
15.8 dB
18.8 dB
53.5 dB
26.2 dB
16.6 dB
100 ± 32 Ohm
100 ± 15 Ohm
450 MHz
45 db/100m
35.5 dB
33.5 dB
-11.5 dB
-9.5 dB
14.7 dB
17.7 dB
<
