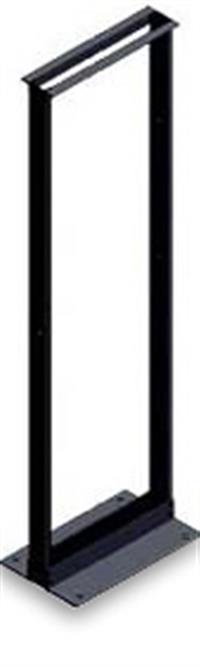

RR-48B
24-RMS-High (48") Equipment Rack, Black Finish
Ship To:
(add new)
yourself
Sharing Discount has been applied
Product Details
Equipment racks are designed for 19-inch rack mount equipment. Racks are constructed of aluminum and are available in a variety of standard heights. Each rack is drilled and tapped on both the front and the rear rails with 10-32 holes on EIA spacing. Standard rack finish is black. Racks are packaged knocked down for easy shipment
Mounting standard: EIA/ECA-310-E 19 in 10-32 mounting holes on front and rear flanges High-strength 6005-T5 aluminum extrusion High-impact black anti-corrosive paint
Body parts: Extruded 6063 T6 aluminum
Load capacity: 24 RMU: 227 kg (500 lb)
D 356 mm (14 in) W 559 mm (22 in)
EXTERNAL DIMENSIONS
RMU
Height
Width
Depth
24
1219 mm (~4 ft)
565 mm (~22 in)
399 mm (~14 in)
45
2134 mm (~7 ft)
565 mm (~22 in)
399 mm (~14 in)
INTERNAL DIMENSIONS
RMU
Height
Width
Depth
24
1067 mm (42 in) 448 mm (175 /8 in) 76 mm (3 in)
45
1999 mm (79 in) 448 mm (175 /8 in) 76 mm (3 in)
PACKAGE
RMU
Height
Width
Depth
Gross weight
24
1245 mm (49 in) 216 mm (8.5 in) 114 mm (4.5 in) 8 kg(19 lb)
45
2159 mm (85 in) 165 mm (6.5 in) 114 mm (4.5 in) 12.7 kg (28 lb)
Storage: -40 °C – +70 °C (-40 °F – +158 °F)
EIA-310D
5-year limited component warranty
