Product Description

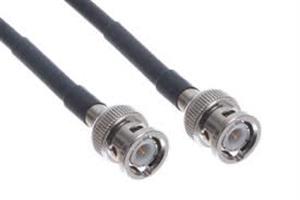

RG8 50Ohm Assemblies Non Plenum
Product Overview
West Penn Wire 50 Ohm Coaxial assemblies are designed for RF & Wireless Microphone Applications. The Cable offers 12AWG Stranded Bare Copper Center Conductor, Foamed PE insulation and a 100% Aluminum Foil + 95% Tinned Copper Braid. The Connector used is a 50Ohm BNC Male Plug.
Package Qty.
1
Features
• Transmission performance 4GHZ
• UL Certified Cable CMR Rating
• 100% factory transmission tested
• BNC Compression Rating Return Loss: Up to 2.4GHz
• Ultra Flex Design
Lengths: 50, 75, 100, 125, 150, 175, 200, 225, 250
WP-810MBM-xxx
Replace xxx: 50, 75, 100, 125, 150, 175, 200, 225, 250
Transmission Performance
Low Band VHF, High Band VHF, Low Band UHF, High Band UHF - Up to 2.4GHz
Cordage
RG213 - 12AWG BCC - High Percentage Shield Coverage - Non-Plenum Black
Physical Characteristics
Cable OD: .405
Connector: Male - Plug 3 Part Crimp Style (CN-BM53-8)
Electrical/Optical Characteristics
Impedance: 50 Ohm
Return Loss:
10MHz: .6dB
100MHz: 2.0dB
400MHz: 2.8dB
900MHz: 6.7dB
1000MHz: 7.2dB
4000MHz: 16.2dB
Application
RF Transmission, Wireless Systems Long Distant Runs
