Product Description
|

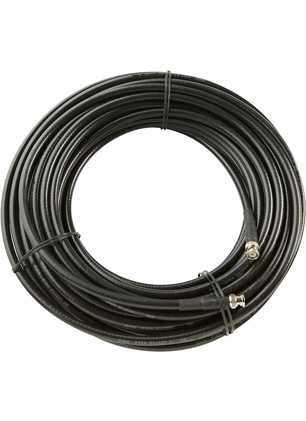

RG8 50Ohm Assemblies Non Plenum
|
Product Overview
|
West Penn Wire 50 Ohm Coaxial assemblies are designed for RF & Wireless Microphone Applications. The Cable offers 10WG Solid Bare Copper Center Conductor, Foamed PE insulation and a 100% Aluminum Foil + 90% Tinned Copper Braid. The Connector used is a 50Ohm BNC Male Plug.
|
Package Qty.
|
1
|
Features
|
• Transmission performance 4GHZ
• UL Certified Cable CMR Rating
• 100% factory transmission tested
• BNC Compression Rating Return Loss: Up to 2.4GHz
Lengths: 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300
|
WP-98G8MBM-xxx
|
Replace xxx: 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300
|
Transmission Performance
|
Low Band VHF, High Band VHF, Low Band UHF, High Band UHF - Up to 2.4GHz
|
Cordage
|
RG8 - 10AWG BCC - High Percentage Shield Coverage - Non-Plenum Black
|
Physical Characteristics
|
Cable OD: .405
Connector: Male - Plug 3 Part Crimp Style (CN-BM98G8)
|
Electrical/Optical Characteristics
|
Impedance: 50 Ohm
Return Loss:
10MHz: .5dB
100MHz: 1.4dB
400MHz: 2.6dB
900MHz: 4.1dB
1000MHz: 4.4dB
2500MHz: 7.5dB
4000MHz: 9.9dB
|
Application
|
RF Transmission, Wireless Systems Long Distant Runs
|
| Option | SKU | Price |
| 25 | WP-98G8BMBM-25 | $136.78 |
| 35 | WP-98G8BMBM-35 | $170.57 |
| 50 | WP-98G8BMBM-50 | $221.24 |
| 75 | WP-98G8BMBM-75 | $305.70 |
| 100 | WP-98G8BMBM-100 | $390.16 |
| 125 | WP-98G8BMBM-125 | $474.62 |
| 150 | WP-98G8BMBM-150 | $559.08 |
| 200 | WP-98G8BMBM-200 | $728.00 |
| 225 | WP-98G8BMBM-225 | $812.46 |
| 250 | WP-98G8BMBM-250 | $896.92 |
|
|
