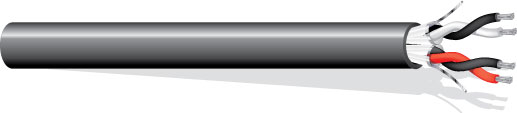

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Pairs
2
• AWG Size
22
• Conductor Stranding
7x30
• Conductor Type
Bare copper
• Nominal DCR
17 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
PVC
• Insulation Thickness
0.01 in
• Insulation Color Code
1. Black/Red-Red 2. Black/White-White
SHIELDING PARAMETER
• Shield Type
Individually Shielded
• Shield Type 2
Aquaseal Water Blocking Tape
• Drain Wire Type
Tinned Copper
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nom. Cap. Between Conductors
55 pF/ft
• Nom. Cap. Conductor to Shield
99 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
4
Jacket Type
UV Resistant PVC
Jacket Thickness
0.025 in
Nominal Cable O.D.
0.250 in
Plenum
No
NEC UL Rating
CM, CL3
RoHS Compliant
Yes
TIA Test
TIA455-82 Water Penetration Test
Pull Tension
60 lbs
Bend Radius
3.42 in
Cable Weight
29 lbs
Belden: 5541P1
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1685
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
