CONSTRUCTION & DIMENSIONS
CONDUCTOR PARAMETER
• Number of Pairs
1
• AWG Size
18
• Conductor Stranding
16x30
• Conductor Type
Tinned Copper
• Nominal DCR
6.5 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
Polyethylene - PE
• Insulation Thickness
0.018 in
• Insulation Color Code
1.Black,2.Clear
SHIELDING PARAMETER
• Shield Type
Overall 100% Aluminum Foil
• Drain Wire Type
• Drain Wire AWG
20 AWG
ELECTRICAL CHARACTERISTICS
• Nom. Cap. Between Conductors
24 pF/ft
• Nom. Cap. Conductor to Shield
47 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Jacket Type
PVC
Jacket Thickness
0.025 in
Nominal Cable O.D.
0.222 in
Plenum
No
NEC UL Rating
CM
RoHS Compliant
Yes
Pull Tension
57 lbs
Bend Radius
1.998 in
Cable Weight
27 lbs
Belden 8760
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
UL Flammability
UL1685
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
RELATED PRODUCTS
Plenum Number
D25293

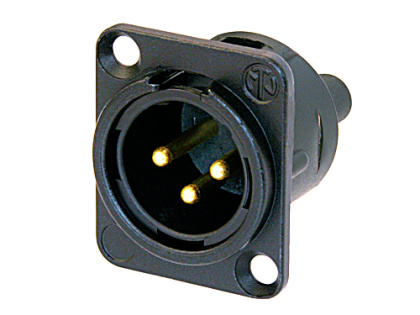

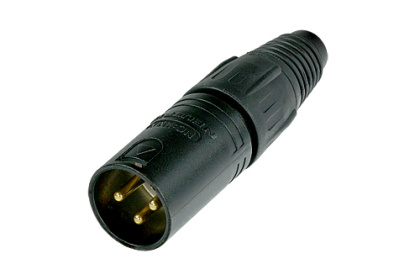

3 Pin XLR Male
CN-NC3MX

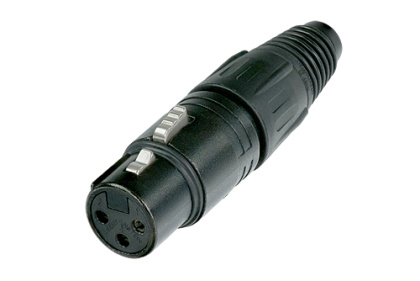

3 Pin XLR Female
