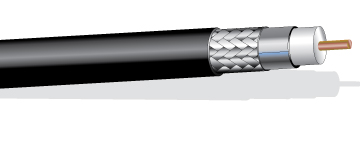

OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
|
|
|
Nominal Velocity of Propagation (VP)
|
84 %
|
|
Delay Skew
|
1.2 ns/ft
|
|
UL Flammability
|
UL1685
|
|
Operating Range
|
-40 to 75 Deg C
|
|
UL Voltage Rating
|
600
|
ATTENUATION PERFORMANCE:
|
Frequency (MHz)
|
Attenuation (db/100ft)
|
|
1 MHz
|
0.1
|
|
10 MHz
|
0.5 db/100ft
|
|
50 MHz
|
1 db/100ft
|
|
100 MHz
|
1.4 db/100ft
|
|
200 MHz
|
1.8 db/100ft
|
|
400 MHz
|
2.6 db/100ft
|
|
650 MHz
|
3.4 db/100ft
|
|
900 MHz
|
4.1 db/100ft
|
|
1000 MHz
|
4.4 db/100ft
|
|
1800 MHz
|
6.1 db/100ft
|
|
2500 MHz
|
7.5 db/100ft
|
|
3000 MHz
|
8.3 db/100ft
|
|
4000 MHz
|
9.9 db/100ft
|
POWER RATING:
|
Frequency [MHz]
|
Max Power Rating [W]
|
|
5 MHz
|
4,021 W
|
|
10 MHz
|
3,217 W
|
|
50 MHz
|
1,609 W
|
|
100 MHz
|
1,149 W
|
|
200 MHz
|
894 W
|
|
400 MHz
|
619 W
|
|
700 MHz
|
447 W
|
|
900 MHz
|
393 W
|
|
1,000 MHz
|
366 W
|
|
1,500 MHz
|
293 W
|
|
1,800 MHz
|
264 W
|
|
2,000 MHz
|
248 W
|
|
2,500 MHz
|
215 W
|
|
3,000 MHz
|
194 W
|
|
4,000 MHz
|
163 W
|
