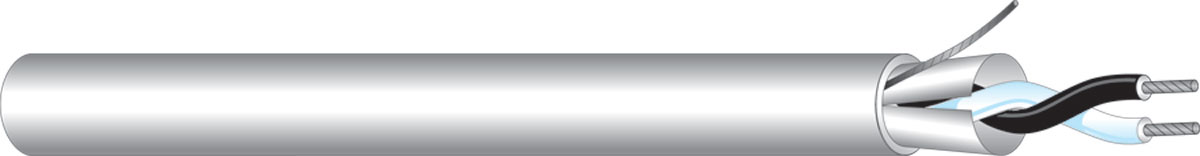

CONSTRUCTION & DIMENSIONS
CONDUCTOR PARAMETER
• Number of Pairs
1
• AWG Size
24
• Conductor Stranding
Solid
• Conductor Type
Tinned Copper
• Nominal DCR
26 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
FEP
• Insulation Thickness
0.013 in
• Insulation Color Code
1. Black 2.White
SHIELDING PARAMETER
• Shield Type
Overall 100% Aluminum Foil
• Drain Wire Type
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nominal Impedance
100 Ohm
• Nom. Cap. Between Conductors
14.5 pF/ft
• Nom. Cap. Conductor to Shield
26 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
2
Jacket Type
Flexible Plenum
Jacket Thickness
0.015 in
Nominal Cable O.D.
0.115 in
Plenum
Yes
NEC UL Rating
CMP
RoHS Compliant
Pull Tension
26 lbs
Bend Radius
1.03 in
Cable Weight
16 lbs
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
Nominal Velocity of Propagation (VP)
72 %
UL Flammability
NFPA 262 Plenum
Operating Range
-0 to 60 Deg C
UL Voltage Rating
300
