Download Data Sheet

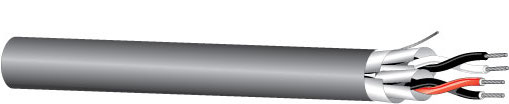

CONSTRUCTION & DIMENSIONS
-
CONDUCTOR PARAMETER
• Number of Pairs
2
• AWG Size
24
• Conductor Stranding
7x32
• Conductor Type
Tinned Copper
• Nominal DCR
26 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
Foam Polyethylene
• Insulation Thickness
0.022 in
• Insulation Color Code
1. Black-Rd, Red, 2.Black-Wh, White 3.Black-Gn, Green
SHIELDING PARAMETER
• Shield Type
Individually Shielded
• Shield Type 2
Overall 100% Aluminum Foil
• Drain Wire Type
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nominal Impedance
110 Ohm
• Nom. Cap. Between Conductors
12.5 pF/ft
• Nom. Cap. Conductor to Shield
22 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Jacket Type
PVC
Jacket Thickness
0.030 in
Nominal Cable O.D.
0.265 in
Plenum
No
NEC UL Rating
CM
RoHS Compliant
Yes
TIA Test
AES/EBU
Pull Tension
29 lbs
Bend Radius
2.385 in
Cable Weight
34 lbs
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
Nominal Velocity of Propagation (VP)
76 %
UL Flammability
UL1685
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
