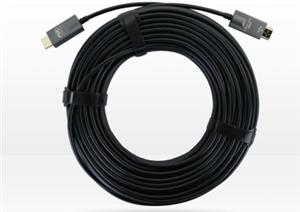

FSR’s Next Generation Digital Ribbon Cables utilize a proprietary technology to allow high speed, high definition HDMI signal transmission over distances of up to 328 ft. The cable is fitted with a discreet black jacket that allows the cable to blend in after installation. The hybrid fiber/copper cables deliver a speed of 18 Gb/sec video bandwidth. They can easily handle up to 4k 60Hz 4:4:4 HDR uncompressed HDMI video and are ARC compatible. The cables come pre-terminated in convenient lengths. These advanced technology cables use four glass fibers, seven copper wires and supply the necessary power to the embedded circuitry at both ends of the cable. They meet the HDMI 2.0 / HDCP 2.2 testing standards. The connector shells are labeled "source" and "display" to aid in proper connections.

• HDMI 2.0 with 4k@60Hz YUV 4:4:4 and HDCP 2.2 compliance.

• Overcomes distance limitations of conventional HDMI cables

• Competitive in cost to older cable types

• Signal integrity is uncompromised

• Multi format compatibility

• No external power or special tooling required

• Cable and connectors easily fit within a 1” conduit

• Plenum Rated - Type CMP/FT6 • UL Listed

• Supports DDC for HDCP and EDID

• Supports PCM, Dolby, DTS-HD and True HD audio • ARC compatible

Product Specifications:

• Up to 4k 60Hz@4:4:4: • Supports DDC for HDCP and EDID

HDR uncompressed HDMI

• 3D: • HDMI-CEC

• Deep Color • ARC compatible

• 18 Gb/sec video bandwidth • Supports PCM, Dolby, DTS-HD and True HD audio

Environmental:

Operating Temperature Range: +32º F to +122º F (0 º to +50ºC)

Maximum Operating Humidity: 85%

Storage Temperature Range: -22º to +122º F (-30º to +50ºC)

Option	SKU	Price
50m	DR-H2.0-50M	$702.32
70m	DR-H2.0-70M	$865.46
100m	DR-H2.0-100M	$1,087.57
