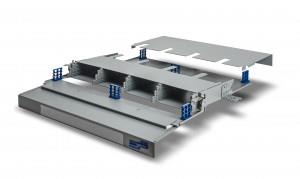

The NextSTEP 1U Patch Panel features a staggered shelf design with the capacity to house 12 NextSTEP modules. The staggered design allows for easy access to a cassette or tray without disrupting any other modules in the panel. The modules can slide into multiple positions facilitating moves, adds, and changes.
Included with the Standard (NS-PP-W1U1) and Light (NS-PP-W1U2) versions of the NextSTEP 1U Patch Panel are 6 magnetic CableTree cable managers capable of managing 72 fibers each. They can be positioned anywhere on the panel greatly enhancing cable management in high density applications. The Lean (NS-PP-W1U1L) version of the panel is ideal for patching purposes and does not include cable management.
All versions of the NextSTEP 1U Patch Panel can accommodate 144F using LC cassettes, 1,152F using MPO adapter strips, and 288F when used as a splice box. The flexibility of this panel is like none other on the market today - No matter the application or installation type, the NextSTEP 1U Patch Panel solves your high density fiber management requirements.
• Fiber count capacity: 144 fibers for patching application, 288 fibers for splicing application
• Plastic materials: UL 94V-0 thermoplastic
• Panel material: 18, 16 & 13 Gauge cold rolled steel (CRS)
• Panel finish: Silver cloud powder paint
• Overall dimensions: 19" x 1.73" x 17.7" (482mm x 44mm x 450mm)
• Overall dimensions – Lean (NS-PPW1UL): 19” x 1.73” x 9.4” (482mm x 44mm x 239mm)
• Weight: 2.61kg (5.75lbs)
• Shipping Weight: 3.49ks (7.7lbs)
• Operating temperature: -40° C (-40° F) ~ 75° C (167° F)
• Storage temperature: -40° C (-40° F) ~ 75° C (167° F)
• Installation temperature: -25° C (-13° F) ~ 40° C (104° F)
• Storage temperature: -25° C (-13° F) ~ 55° C (131° F)
• Relative humidity: ≤ 85% (30° C)
