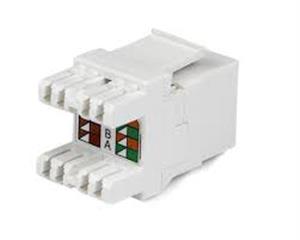

RJ456u-C6Ccc24

PRODUCT OVERVIEW

-

Package Quantity

24

PRODUCT FEATURES

-

Features

• Category 5E and Category 6+ Applications

• Multiple Colors: Black, Blue, White, Ivory, Red, Yellow, Orange, Green

SPECIFICATIONS & DIMENSIONS

-

Cable Specifications

Category 5E, Category 6 - (4245,254245,4246,254246)

Transmission Performance

Category 6(+)

TIA 568 568.C.2

PCC Part 68, Subpart F, IEC 60603-7

ETL Verified Category 6

Physical Characteristics

Height:              .88mm

Width:               .64

Depth:              1.29

Wiring Scheme:  T568A/B

Weight:             0.14lbs

Electrical/Optical Characteristics

Dielectric Strength:     1000 V RMS @ 60hz for 1 min

Current Rating:          1.5 A

Insulation Resistance: 500M-Ohm Min

Max Contact Resist:   20mOhm

Termination Resist:    2.5mOhm

Environmental Characteristics

Installation Temp Range:     -10-60 Deg C

Storage Temp Range:          -40-70 Deg C

Operating Temp Range:      -10-60 Deg C

Warranty

10 Years

Colors

RJ456U-C6CBK24          Black

RJ456U-C6CBU24          Blue

RJ456U-C6CWH24        White

RJ456U-C6CRD24          Red

RJ456U-C6CGN24          Green

RJ456U-C6CIV24            Ivory

RJ456U-C6CYE24           Yellow

RJ456U-C6COR24           Orange

Tools

TL-CATWIREST - Stripping and Pair Seperation Tool

KJWP-MTOOL - Multi-Crimp Tool
