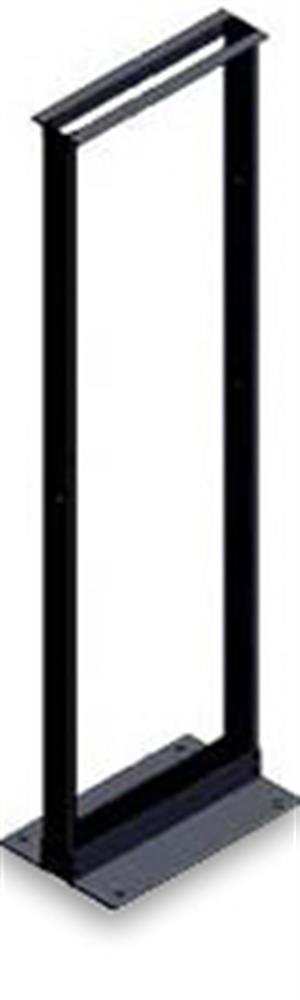

Equipment racks are designed for 19-inch rack mount equipment. Racks are constructed of aluminum and are available in a variety of standard heights. Each rack is drilled and tapped on both the front and the rear rails with 10-32 holes on EIA spacing. Standard rack finish is black. Racks are packaged knocked down for easy shipment

Mounting standard: EIA/ECA-310-E 19 in
10-32 mounting holes on front and rear flanges
High-strength 6005-T5 aluminum extrusion
High-impact black anti-corrosive paint

CONSTRUCTION

Body parts: Extruded 6063 T6 aluminum
Finish: Electrostatic microfinish paint

MECHANICAL

Load capacity: 24 RMU: 227 kg (500 lb)
28 RMU: 363 kg (800 lb)

FOOTPRINT

D 356 mm (14 in) W 559 mm (22 in)

DIMENSIONS:

EXTERNAL DIMENSIONS
RMU	Height	Width	Depth
24	1219 mm (~4 ft)	565 mm (~22 in)	399 mm (~14 in)
45	2134 mm (~7 ft)	565 mm (~22 in)	399 mm (~14 in)

INTERNAL DIMENSIONS
RMU	Height	Width	Depth
24	1067 mm (42 in)	448 mm (175/8 in)	76 mm (3 in)
45	1999 mm (79 in)	448 mm (175/8 in)	76 mm (3 in)

PACKAGE
RMU	Height	Width	Depth	Gross weight
24	1245 mm (49 in)	216 mm (8.5 in)	114 mm (4.5 in)	8 kg(19 lb)
45	2159 mm (85 in)	165 mm (6.5 in)	114 mm (4.5 in)	12.7 kg (28 lb)

ENVIRONMENTAL CONDITIONS

Storage: -40 °C – +70 °C (-40 °F – +158 °F)
Operation: -10 °C – +60 °C (+14 °F – +140 °F)
RH (operation): max non-condensing 93 %

COMPLIANCE

EIA-310D

WARRANTY

5-year limited component warranty
