SC10030

PRODUCT OVERVIEW

-

Product Overview

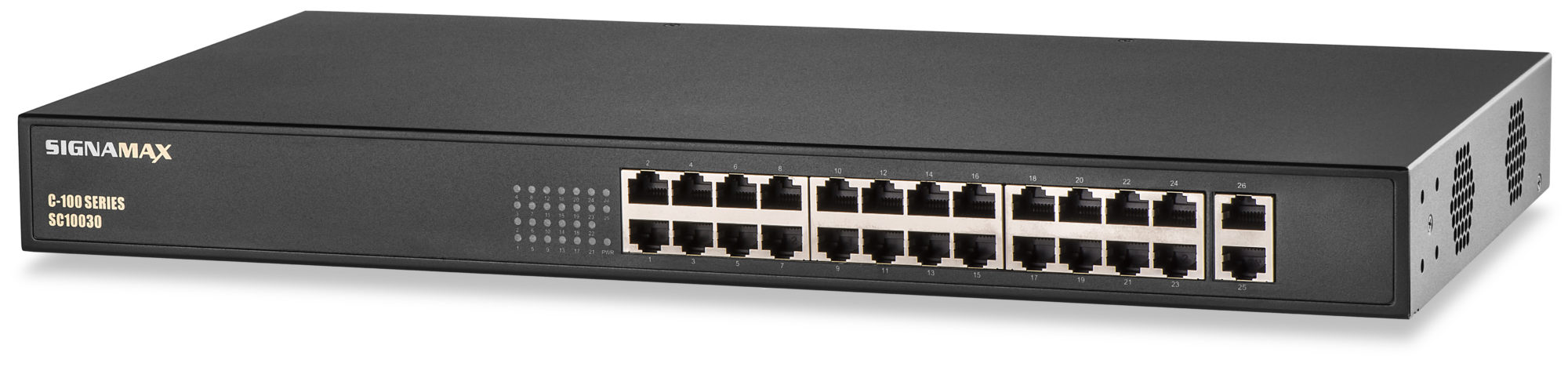

C-100 24 Port Fast Ethernet PoE+ Lite Switch - UnManaged

Package Quantity

1

PRODUCT FEATURES

-

Features

Zero touch Plug and Play connectivity

Delivers up to 235W PoE with PoE+ support on all ports

250W internal power supply

2 Gigabit SFP uplink interfaces

Rugged metal case with clean black finish

Integrated mounting brackets for rack installation

SPECIFICATIONS & DIMENSIONS

-

Connectors

RJ-45 (Downlink): 24 10/100

Uplink Ports: 2 Gigabit SFP

PoE: 24

Applicable Standards

LAYER 2 STANDARDS

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3ab 1000BaseT

IEEE 802.3 Auto-Negotiation

SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)

IEEE 802.3x Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Performance

PoE

Budget: 235W

Support IEEE 802.3af/IEEE802.3at on each port

Dynamic Power Allocation

PERFORMANCE

Switching Capacity: 8.8Gbps

Forward Rate: 6.6Mpps

4K MAC Addresses

4Mb Packet Buffer

Supports 10K Jumbo Frames

Wirespeed Forwarding

Physical Characteristics

Dimensions: 17.3” W x 8.8” D x 1.7” H (44 cm x 22.4 cm x 4.4 cm)

19 in rack mounting hardware included

Weight: 6.3 lb (2.8 kg)

Electrical/Optical Characteristics

Max Power Consumption: 250W

Power Supply AC Input: 100 – 240 V AC, 50/60 Hz

MTBF: 100K hrs

Environmental Characteristics

Operating Temperature: 14 to 131°F (-10 to 55°C)

Storage Temperature: -4 to 158°F (-20 to 70°C)

Operating/Storage Humidity: 5 to 95% (non-condensing)

Warranty

Five years (Including power supply)
