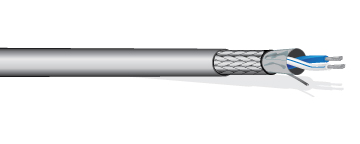

CONSTRUCTION & DIMENSIONS
CONDUCTOR PARAMETER
• Number of Pairs
1
• AWG Size
24
• Conductor Stranding
7x32
• Conductor Type
Tinned Copper
• Nominal DCR
26 Ohm/1000ft
INSULATION PARAMETER
• Insulation Type
Polyethylene - PE
• Insulation Thickness
0.02 in
• Insulation Color Code
1.Blue-White,Blue
SHIELDING PARAMETER
• Shield Type
Overall 100% Aluminum Foil
• Shield Type 2
90% Tinned Braid
• Drain Wire Type
• Drain Wire AWG
24 AWG
ELECTRICAL CHARACTERISTICS
• Nominal Impedance
120 Ohm
• Nom. Cap. Between Conductors
12.8 pF/ft
• Nom. Cap. Conductor to Shield
23 pF/ft
OVERALL CONSTRUCTION PARAMETERS
Total Number of Conductors
2
Jacket Type
PVC
Jacket Thickness
0.032 in
Nominal Cable O.D.
0.275 in
Plenum
No
NEC UL Rating
CM
RoHS Compliant
Yes
Pull Tension
72 lbs
Bend Radius
2.475 in
Cable Weight
32 lbs
Belden: 9841
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
Nominal Velocity of Propagation (VP)
66 %
Delay Skew
1.6 ns/ft
UL Flammability
UL1685
Operating Range
-20 to 60 Deg C
UL Voltage Rating
300
